E45 Compact Excavator

Bobcat_E45_Main
Bobcat_Mini_Excavators_-_E45_3

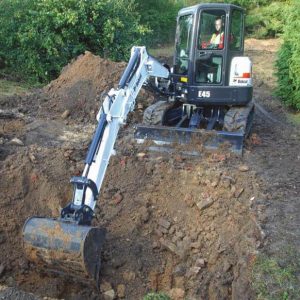

Bobcat_Mini_Excavators_-_E45_1
Bobcat_E45_Main
Bobcat_Mini_Excavators_-_E45_3
Bobcat_Mini_Excavators_-_E45_1
  • Zero Tail Swing (ZTS)
  • Reliability
  • Smooth workgroup control
  • Premium/Outstanding hydraulic performance
  • Unparalleled operator comfort
  • Superb operator space
  • New X-frame undercarriage for better ground clearance and easy shedding of debris
Add to RFQ

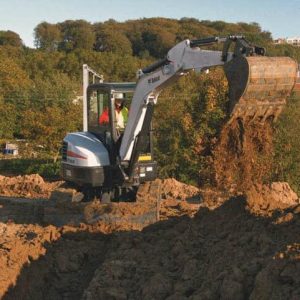

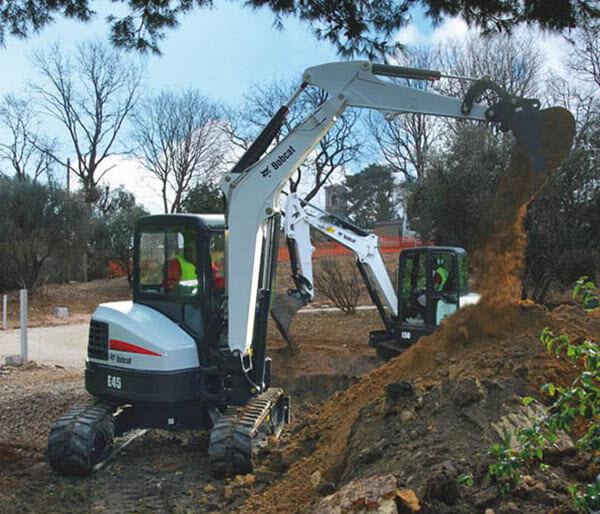

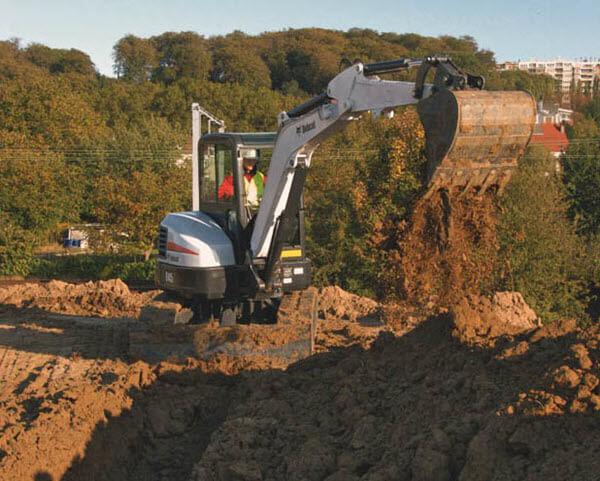

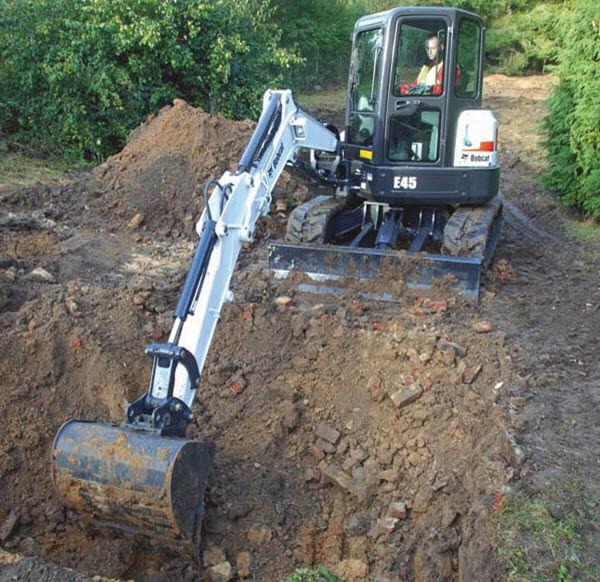

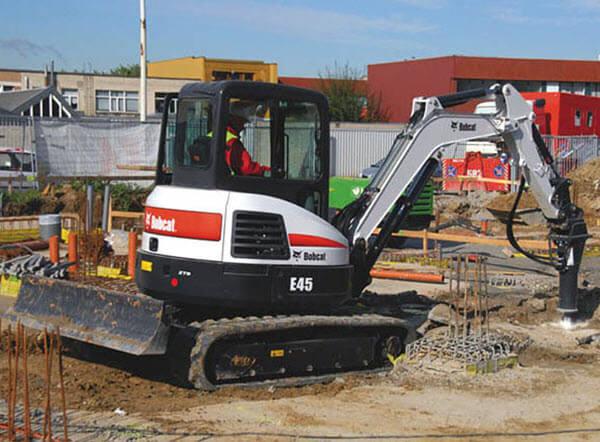

E45 – Smooth Power & Operator Comfort by Bobcat

The E45 Zero Tail Swing (ZTS) compact excavator sets the standard in the compact excavator industry for reliability, operator comfort, smooth workgroup control and superior hydraulic performance.

Equipped with cab and bucket, the E45 has an operating weight of 4634 kg and offers a maximum digging depth of 3300 mm.

The E45 excavator feature a completely new cab design that offers the operator plenty of space for their feet and legs as well as a very comfortable work environment.
Less stress in tight space with Zero Tail Swing
Enjoy true peace of mind in narrow and confined spaces with our Zero Tail Swing and front corners which stay in the track-width when you slew the house. It lets you focus on your work, instead of worrying about hitting objects. Even the open door stays inside the counterweight radius.

WEIGHTS
Operating weight with canopy kg –
Operating weight with cab and heating kg 4634
DIMENSIONS
Width (Min / Max) mm 1960
Height mm 2532
Track width mm 400
Clearance, upper structure to ground line mm 640
ENGINE
Make / Model Kubota / V2403-M-D1-E3B-BC-5
Fuel / Cooling Diesel / Liquid
Maximum power at RPM (ISO 9249) kW 30.2 (at 2200)
Torque (SAE Net) Nm 152.7
Number of cylinders 4
Displacement l 2.4
Fuel reservoir l 79.9
HYDRAULIC SYSTEM
Total pump capacity l/min 99.1
System relief pressure for auxiliary circuits bar 210
Auxiliary flow l/min 75.7
PERFORMANCE
Maximum digging depth (with standard / long dipperstick) mm 3300 / 3600
Maximum dump height (with standard / long dipperstick) mm 3697 / 3879
Maximum reach at ground level (with standard / long dipperstick) mm 5670 / 5964
Digging force – dipperstick (with standard / long dipperstick) N 25700 / 23700
Digging force – bucket N 35800
Drawbar pull N 40400
Ground pressure (with standard / long dipperstick) kPa 25.4
Travel speed – low range km/h 2.4
Travel speed – high range km/h 4.2
SLEW SYSTEM
Boom swing – left ° 75
Boom swing – right ° 50
Slew rate RPM 9.0
REMARKS
Zero Tail Swing (ZTS)



View PDF Version

ATTACHMENTS
E08 E10 E14 E16 E25 E26 E32 E35 E45 E50 E55 E60 E62 E80 E85
Angle Broom
Augers X X X X X X X X X X X X X
Backhoes
Buckets X X X X X X X X X X X X X X X
Concrete Pump

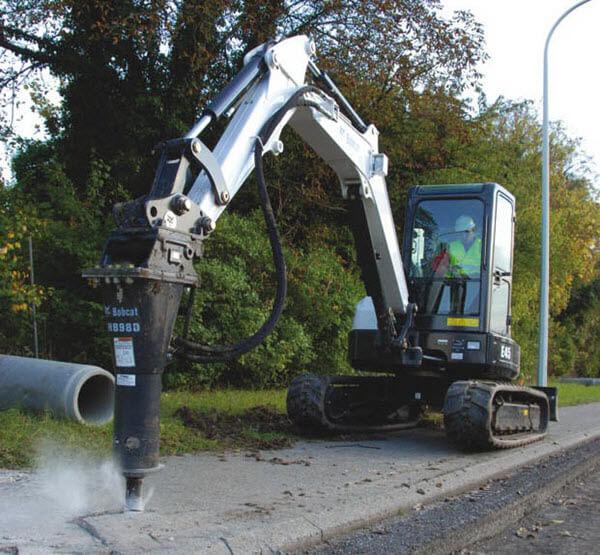

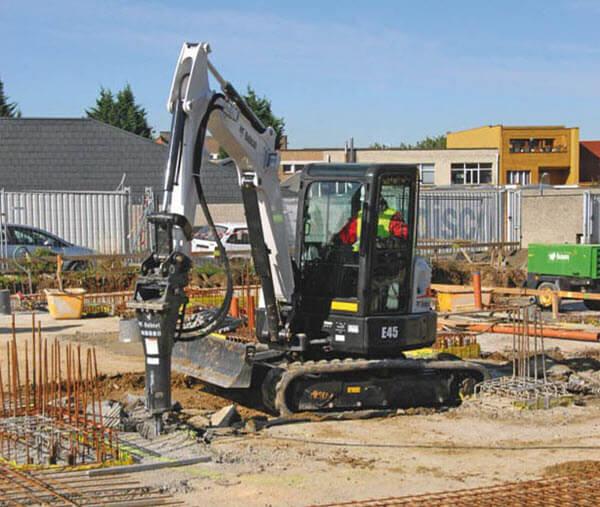

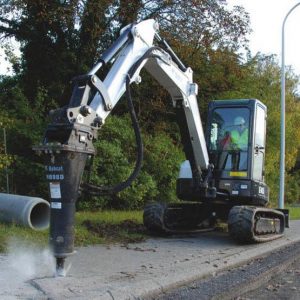

Hydraulic Breaker X X X X X X X X X X X X X X X
Land Scape Rake
Man Platform
Mower
Pallet Forks
Planer
Sweeper
Tree Transplanter
Trencher
Vibratory Roller
Wheel Saw
