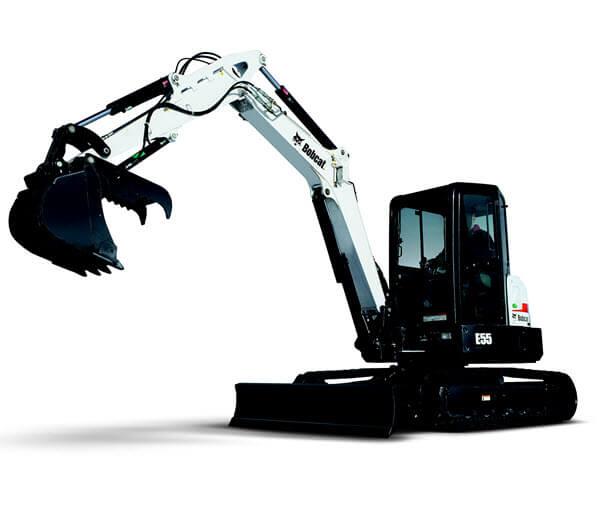

This model shares the main design approach of the new excavator generation that started with the E32 and E35, followed by the E45 and E50 with tremendous success. They set the standard in the compact excavator industry with respect to reliability, operator comfort, smooth workgroup control and superior hydraulic performance. The E55 offers numerous advantages and new technologies that are the state-of-the-art in this market.
| WEIGHTS | ||
| Operating weight with canopy | kg | – |
| Operating weight with cab and heating | kg | 5501 |
| DIMENSIONS | ||
| Width (Min / Max) | mm | 1960 |
| Height | mm | 2541 |
| Track width | mm | 400 |
| Clearance, upper structure to ground line | mm | 618 |
| ENGINE | ||
| Make / Model | Kubota / V2403-M-D1-TE3B-BC-4 | |
| Fuel / Cooling | Diesel / Liquid | |
| Maximum power at RPM (ISO 9249) | kW | 36.4 (at 2200)) |
| Torque (SAE Net) | Nm | 179.5 |
| Number of cylinders | 4 | |
| Displacement | l | 2.4 |
| Fuel reservoir | l | 79.9 |
| HYDRAULIC SYSTEM | ||
| Total pump capacity | l/min | 138.5 |
| System relief pressure for auxiliary circuits | bar | 290 |
| Auxiliary flow | l/min | 75.7 |
| PERFORMANCE | ||
| Maximum digging depth (with standard / long dipperstick) | mm | 3923 |
| Maximum dump height (with standard / long dipperstick) | mm | 4179 |
| Maximum reach at ground level (with standard / long dipperstick) | mm | 6083 |
| Digging force – dipperstick (with standard / long dipperstick) | N | 26100 |
| Digging force – bucket | N | 42000 |
| Drawbar pull | N | 52343 |
| Ground pressure (with standard / long dipperstick) | kPa | 33.5 |
| Travel speed – low range | km/h | 3.1 |
| Travel speed – high range | km/h | 5.0 |
| SLEW SYSTEM | ||
| Boom swing – left | ° | 75 |
| Boom swing – right | ° | 50 |
| Slew rate | RPM | 9.0 |
| REMARKS | ||
| ATTACHMENTS | |||||||||||||||
| E08 | E10 | E14 | E16 | E25 | E26 | E32 | E35 | E45 | E50 | E55 | E60 | E62 | E80 | E85 | |
| Angle Broom | |||||||||||||||
| Augers | X | X | X | X | X | X | X | X | X | X | X | X | X | ||
| Backhoes | |||||||||||||||
| Buckets | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X |
| Concrete Pump | |||||||||||||||
| Hydraulic Breaker | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X |
| Land Scape Rake | |||||||||||||||
| Man Platform | |||||||||||||||
| Mower | |||||||||||||||
| Pallet Forks | |||||||||||||||
| Planer | |||||||||||||||
| Sweeper | |||||||||||||||
| Tree Transplanter | |||||||||||||||
| Trencher | |||||||||||||||
| Vibratory Roller | |||||||||||||||
| Wheel Saw | |||||||||||||||
