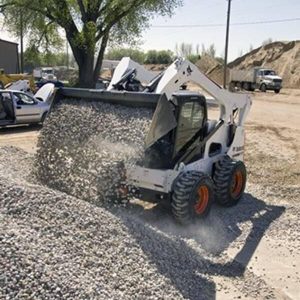

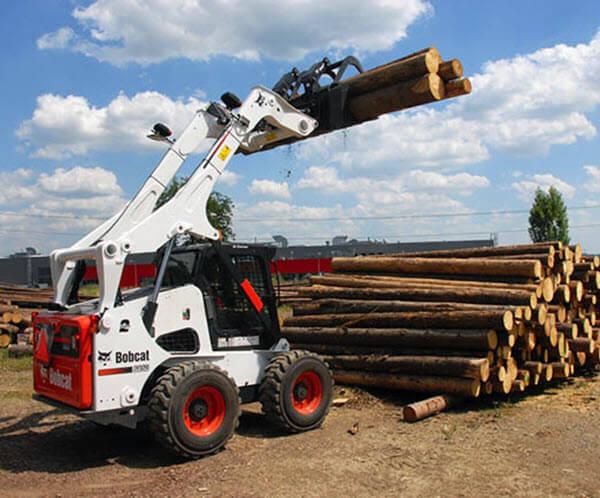

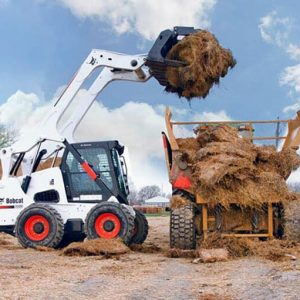

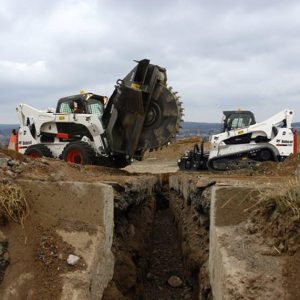

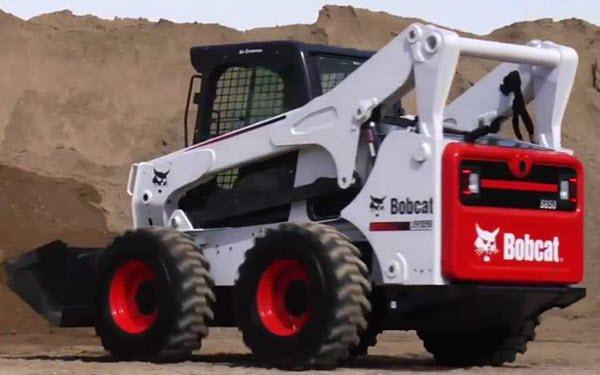

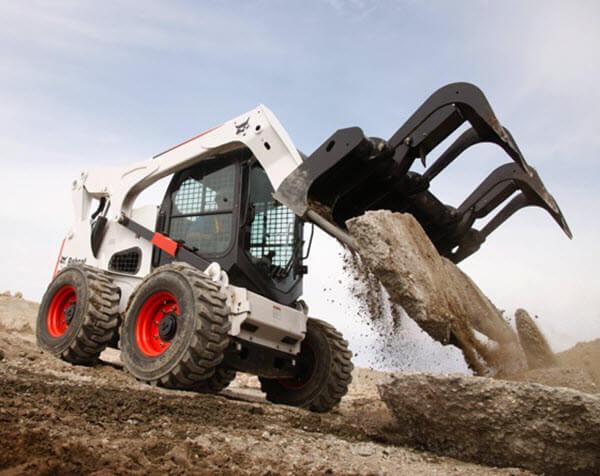

S850 Skid-Steer Loader

Operator comfort
Visibility
Performance
Reliability/durability
Serviceability

Add to RFQ

Powerful performer

The Bobcat 800 series loader models are the largest loaders Bobcat has ever manufactured. The new skid-steer loader S850 belongs to this new platform that is larger and longer than the current large frame loaders (S300/S330). These new loaders offer significantly improved visibility, improved pushing power, more powerful hydraulics, increased fuel capacity, best-in-class comfort, higher rated operating capacities, higher horsepower and more uptime protection and are especially designed for highest productivity in demanding applications.

S850 Skid Steer Loader-Brochure

MACHINE RATING
Rated operating capacity (ISO 14397-1)	kg	1850
Tipping load (ISO 14397-1)	kg	3700
Pump capacity std flow / high flow (at pump RPM)	l/min	87.1 / 151 (at 3294 RPM)
System relief at quick couplers	MPa	24.1
Travel speed	km/h	11.4
Travel speed (high – option*)	km/h	19.8
Lift arm path		Vertical
DIMENSIONS
Length with standard bucket	mm	3751
Width over standard bucket	mm	2032
Height with operator cab	mm	2118
Height to bucket hinge pin	mm	3657
Wheelbase	mm	1342
ENGINE
Make / Model		Kubota / V3307
Type		Turbo
Fuel / Cooling		Diesel / Liquid
Maximum power at RPM (SAE J1995)	kW / HP	68.6 / 92.0 (at 2400 RPM)
Torque at RPM (SAE J1995)	Nm	315.0 (at 1600 RPM)
Number of cylinders / Displacement	cm³	4 / 3769
Fuel tank capacity	l	124.2
WEIGHTS
Operating weight**	kg	4540
Shipping weight	kg	4254

PDF version

ATTACHMENTS
	S70	S100	S130	S510	S530	S630	S650	S770	S850	T590
Angle Broom	X	X	X	X	X	X	X	X	X	X
Augers	X	X	X	X	X	X	X	X	X	X
Backhoes	X	X	X	X	X	X	X	X	X	X
Buckets	X	X	X	X	X	X	X	X	X	X
Concrete Pump						X	X	X	X	X
Hydraulic Breaker	X	X	X	X	X	X	X	X	X	X
Land Scape Rake						X	X	X		X
Mower		X	X	X	X	X	X	X	X	X
Pallet Forks	X	X	X	X	X	X	X	X	X	X
Planer			X	X	X	X	X	X	X	X
Sweeper	X	X	X	X	X	X	X	X		X
Tree Transplanter				X	X	X	X	X	X	X

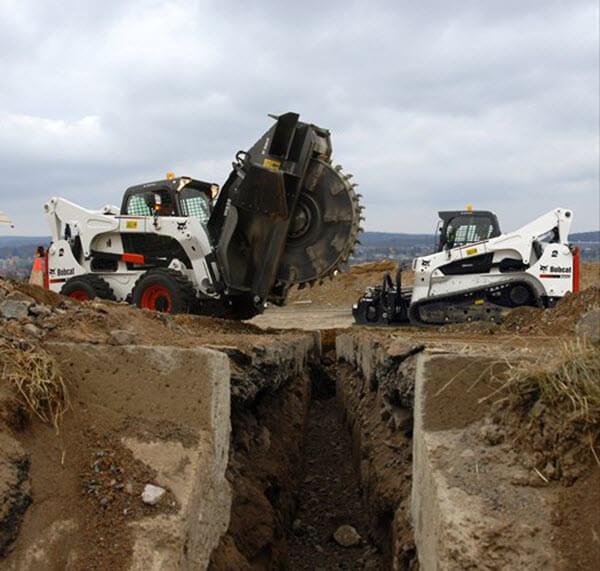

Trencher	X	X	X	X	X	X	X	X	X	X
Vibratory Roller			X	X	X	X	X	X	X	X
Wheel Saw						X	X	X	X	X

Skid Steer Loader-Product Range
